Valves and Flowmeters:

The flowmeter & valve connections on the topboard are numbered 1, 2, 3, 4 - and correlate to the configuration of taps-per-screen for your specific installation.

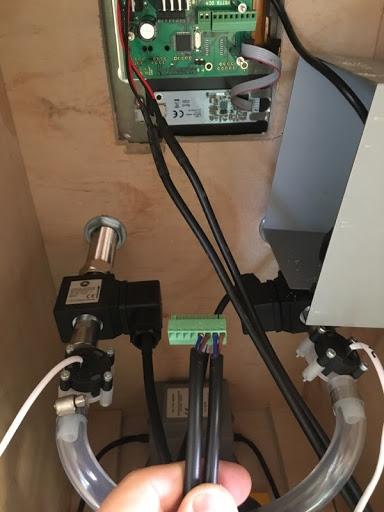

The two valve wires consist of a blue power cable and a brown ground cable. These are secured to the topboard utilizing the first 2 ports of the 8-port Phoenix connector for the applicable valve number (1, 2, 3, 4).  - SEE IMAGE.

The three flowmeter wires are secured into the topboard utilizing the 3-port Phoenix connector. There is one 3-Port Phoenix connector used for each flowmeter. There is a red power, black ground, and blue signal wire that will terminate into each 3-port Phoenix connector.

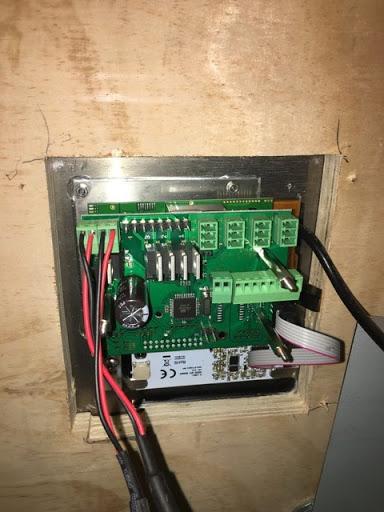

Back of TTG Topboard	Valve Cables Terminated	Flowmeter Cables Terminated

Valve and Flowmeter cables Terminated and Installed in the corresponding slot on the back of the TTG Topboard.
