Cloud Gateway: IP Addressing, Firewall Requirements, Network Topology & Whitelisting

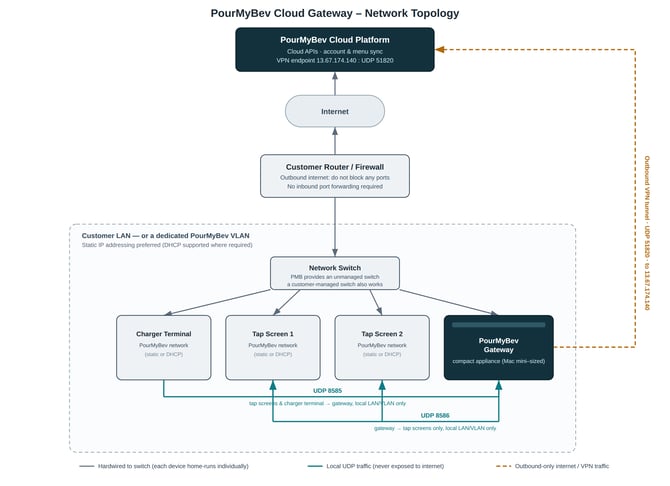

Network Diagram:

Deployment Options

The gateway supports two network setups:

• A dedicated PourMyBev LAN or VLAN, separate from other traffic on your network.
• Your existing customer-managed network.

A dedicated VLAN isolates PourMyBev traffic and simplifies troubleshooting down the line.

IP Addressing

• Static addressing is preferred. Static IPs keep assignments predictable and simplify support calls.
• DHCP works too, in networks where a static setup is not practical.
• Send your PMB Project Manager the gateway's planned IP address, subnet, and DNS servers before install. Do this early if your organization runs a strict firewall or whitelist policy.

Example static IP scheme:

Network: 192.168.2.0/24

Subnet Mask: 255.255.255.0

If possible, reserve the following address range exclusively for PourMyBev devices:

192.168.2.101 – 192.168.2.254

Static Device Assignments

Non-PourMyBev devices should not use IP addresses within this reserved range.

VLAN Deployment

If a dedicated physical LAN is not available, a dedicated VLAN is acceptable.

The VLAN must meet the following requirements:

• • Dedicated exclusively to PourMyBev equipment
  • Use the 192.168.2.0/24 subnet
  • Reserve addresses 192.168.2.101-254
  • Provide one Ethernet switch port for every PourMyBev device
  • Prevent non-PourMyBev devices from joining the VLAN

Local Device Communication (LAN/VLAN Only)

The gateway talks to your PourMyBev devices over UDP on the local network. Configure your firewall and VLAN access rules to allow this traffic between PourMyBev devices.

 Internet and Cloud Connectivity

The gateway needs a reliable, outbound internet connection to reach the PourMyBev cloud platform.

• Leave every outbound port on your router open. Do not block outbound traffic from the gateway.
• Allow outbound VPN traffic to our public IP address, 13.67.174.140, on UDP port 51820. The gateway uses this connection to reach PourMyBev's cloud services.
• Skip inbound port forwarding. The gateway starts every connection itself, so your router does not need any inbound rules pointed at the gateway.

Wired Network Requirements

The PourMyBev system operates on its own dedicated Local Area Network (LAN).

Prior to installation, provide the following Category 6 Ethernet cabling.

Cabling Standards

All network cabling must:

• Be Category 6 or better
• Be terminated using TIA/EIA-568B
• Use RJ45 male connectors
• Be fully tested before installation
• Be permanently labeled

Dedicated Network Requirements

Preferred Deployment

PourMyBev strongly recommends deploying the entire system on a physically isolated LAN.

The following devices should reside on the same dedicated network:

• PourMyBev Gateway
• UI Screen Clients
• Chargers
• Network Switch

No unrelated customer devices should share this network.

The PourMyBev Server requires a dedicated wired Ethernet connection with reliable internet access. This allows the PourMyBev technical support team to render assistance when needed, provide snappy reliable software upgrades, and if using one of our many integrations it allows ample bandwidth for reliability and performance.

Minimum recommended internet service:

• 100 Mbps download
• 100 Mbps upload

Recommended best practices:

• Prioritize PourMyBev traffic using Quality of Service (QoS).
• Limit guest Wi-Fi bandwidth to prevent saturation during peak business hours.
• Deploy a secondary ISP for automatic failover in high-volume locations whenever possible if you are in an area with spotty/unreliable ISP's or old buildings with dated cable runs.

 Pre-Installation Checklist

• Network cabling meets Category 6 (or better) standards, tested and labeled.
• Every PourMyBev device and the gateway has a dedicated network drop.
• Deployment model is decided: dedicated PourMyBev LAN/VLAN or customer-managed network.
• Gateway IP addressing is set: static (preferred) or DHCP.
• Firewall and VLAN rules allow local UDP traffic (ports 8585 and 8586) between PourMyBev devices.
• UDP 8585 and UDP 8586 stay off the public internet.
• Outbound internet access is open on your router; no ports blocked.
• Outbound UDP 51820 is allowed to 13.67.174.140.
• No inbound port forwarding is configured for the gateway.
• Strict firewall or whitelist sites have shared their subnet, gateway IP, DNS, and allow-list with their installation coordinator.

Before scheduling installation, verify the following requirements.

Cabling

Internet
