Malibu Jacks Soda with printed QR Code Configuration

Soda with printed QR Code configuration

Quick example video of printed QR sticker workflow:

Note, no integration. Venue would manually ring up the purchase on their POS like any other direct beverage sale.

Product Setup requires Portion Mode:

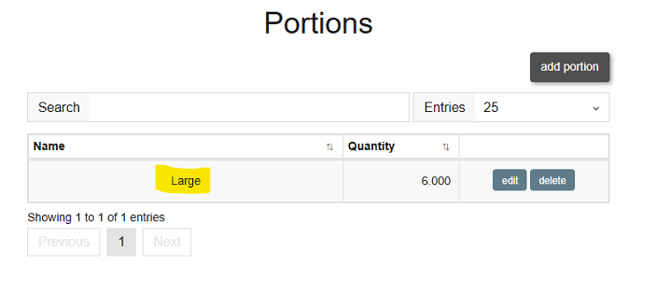

Create your portion sizes as normal:

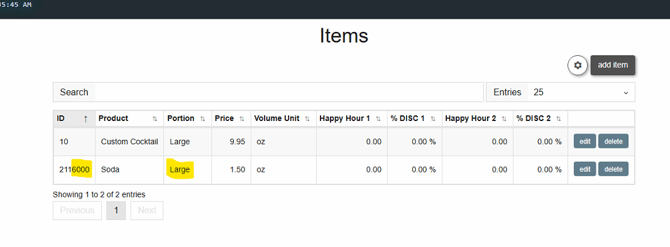

Create your items. The item ID must have at least 3 digits and ends with 4 digits equal to the quantity that matches the qty set in your Portions size above. The reason for this, the QR code passes this qty value to the screen via the ID value.

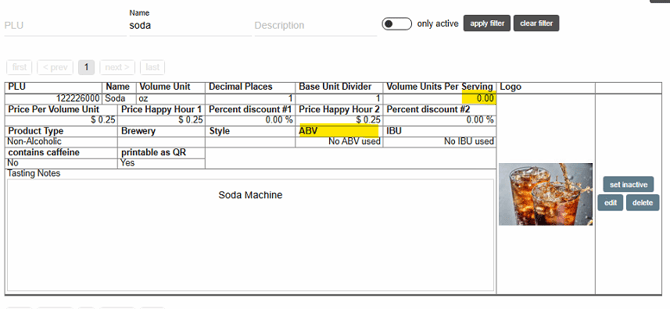

Create your product. For Soda dispensing, a single “Soda” product makes sense.  To ensure that non-alcoholic beverages don’t have serving limits set the ABV to blank or 0 and Units per serving to 0.

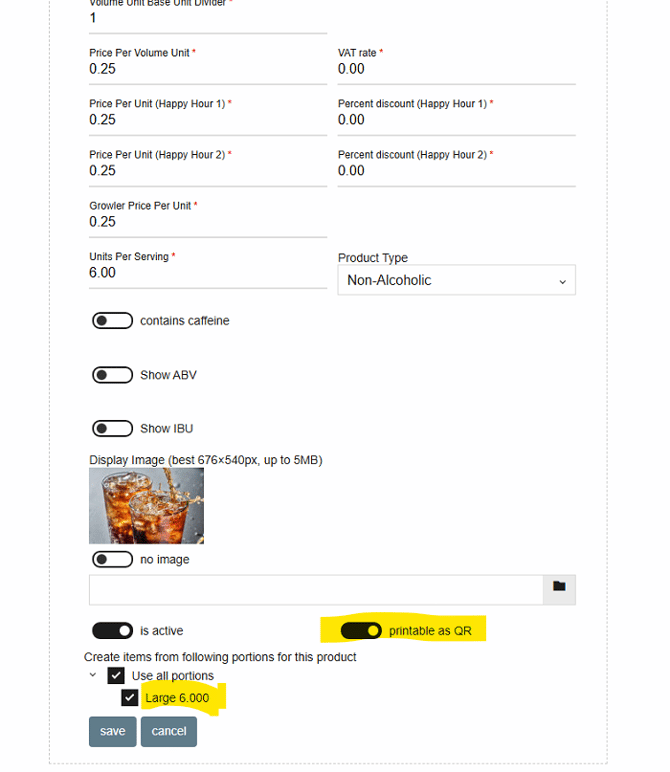

You must select the “Printable as QR” option at the product level. This ensures this product option displays on the Charger.

Client, Charger, & QR config settings

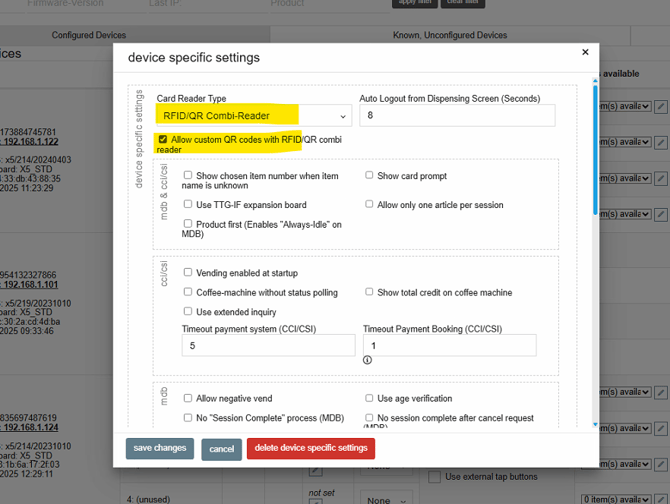

On the screen controlling the Soda you must select these device specific options:

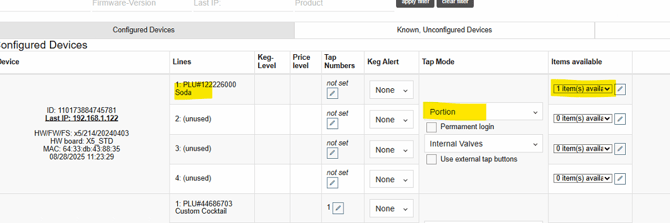

Standard Portions setup is needed for the screen:

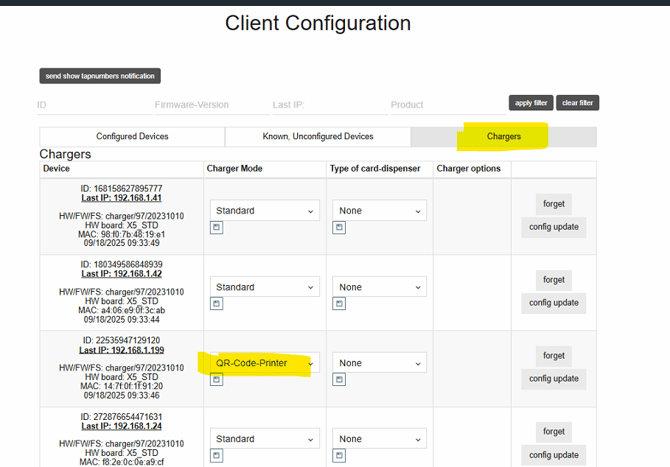

The Charger has a specific display setting for just printing QR codes. This is not compatible with any other card creation options

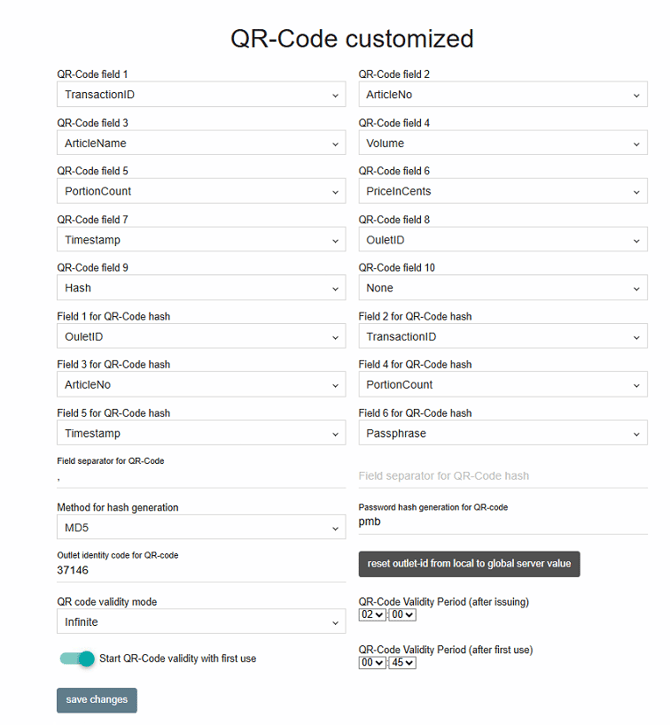

QR Code customization settings should look like the example below. Note, the Outlet ID can be any made up number. This is also where you set the validity period of the QR code. There are two main triggers, 1. After issuing the QR, 2. After first use

For example, the settings below allows for QR to be valid until the first port and then expires after 45 minutes.

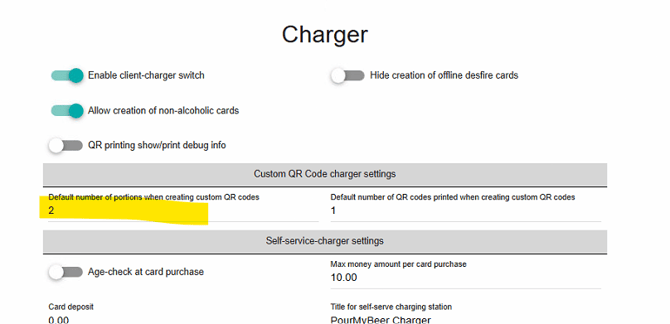

Below is where you set the default number of pours that a customer will get with a single QR code. For example, if the venue is charging $3.00 for two 20oz soda pours. Then you would set the default portions below to 2 and set the portions size to 20oz but the price $1.50 (2 x $1.50 = $3.00).

If the default is a single pour with each QR then leave the default of 1.
