How to Set Up Portion Mode in Table Tap Go

Portion Mode allows your customers to choose from preset pour sizes (like 4oz, 8oz, or 16oz) directly on the tap screen before pouring.

This feature helps maintain consistent pricing and simplifies the pour process for guests.

Step 1: Open the TTG Server and Access the Product Database

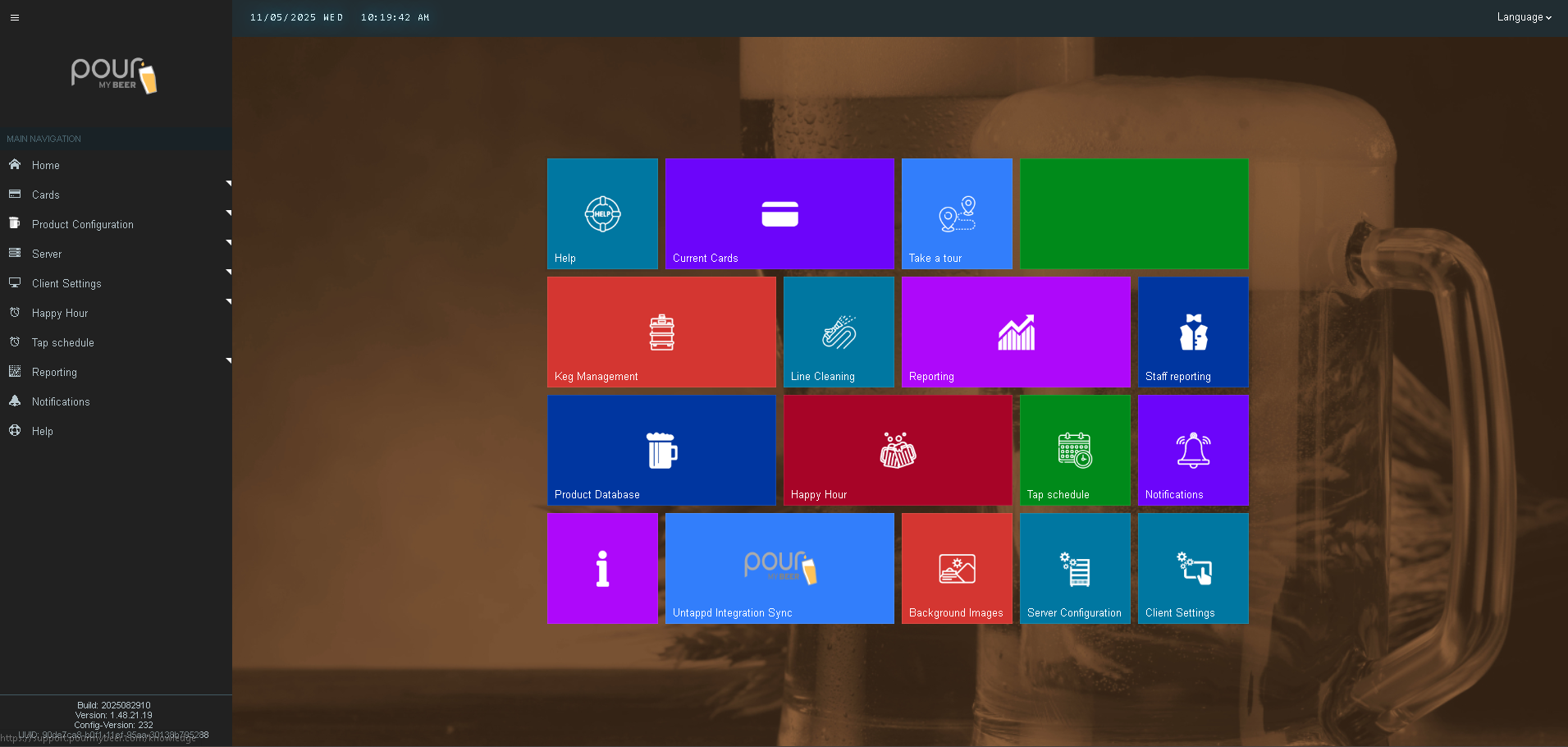

1. On your server desktop, open the Table Tap Go Server Management Page or visit:



   http://localhost:8585



2. From the main menu, click Product Database.



3. Then, click the Portions tab at the left side of the screen.



Step 2: Add Portion Sizes

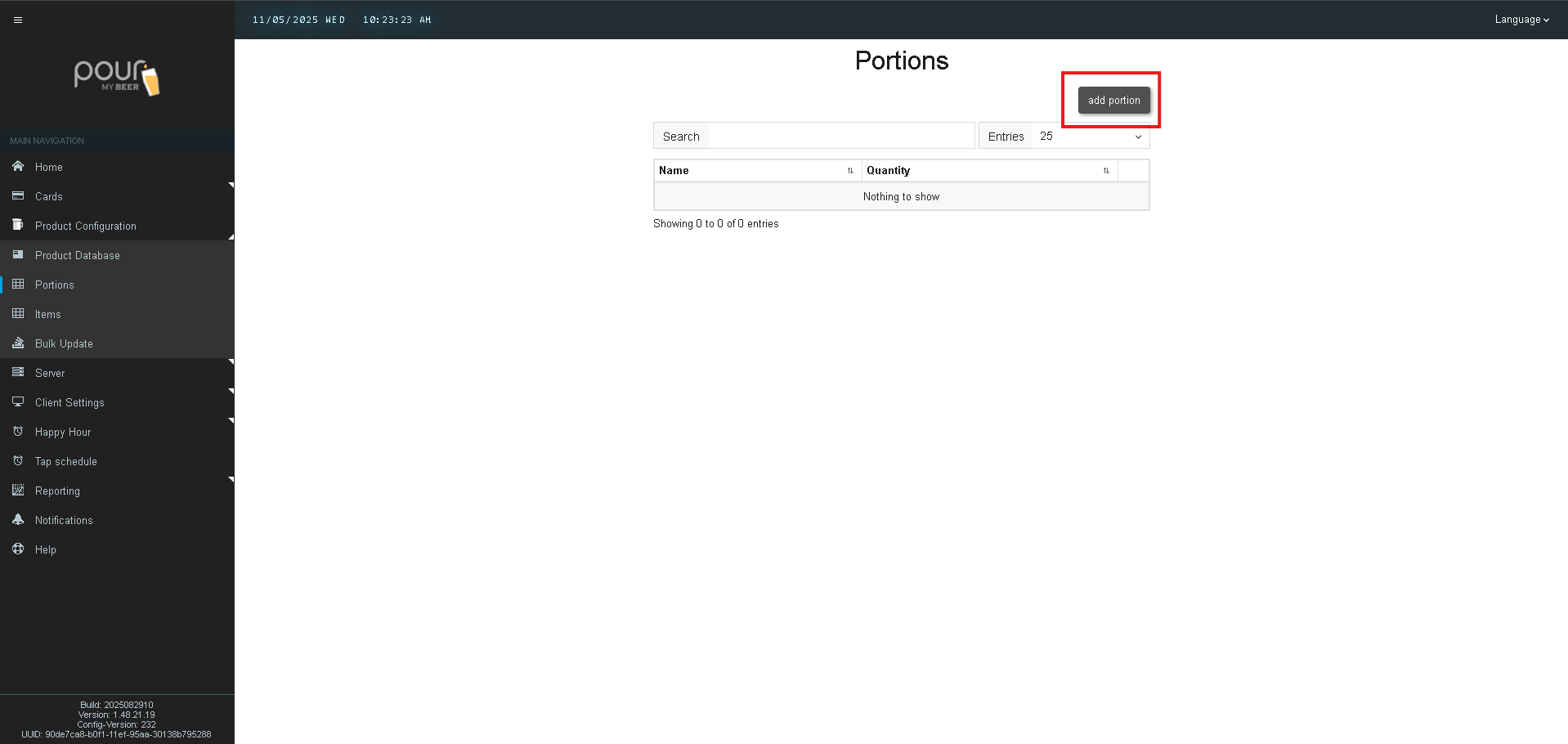

1. Tap the Add Portion button.



2. Enter the following details:

   • Portion Name: The label your customers will see on the tap screen (e.g., Taster, Half Pint, Full Pint).

   • Quantity (oz): The volume size for this portion (e.g., 4, 8, 16).

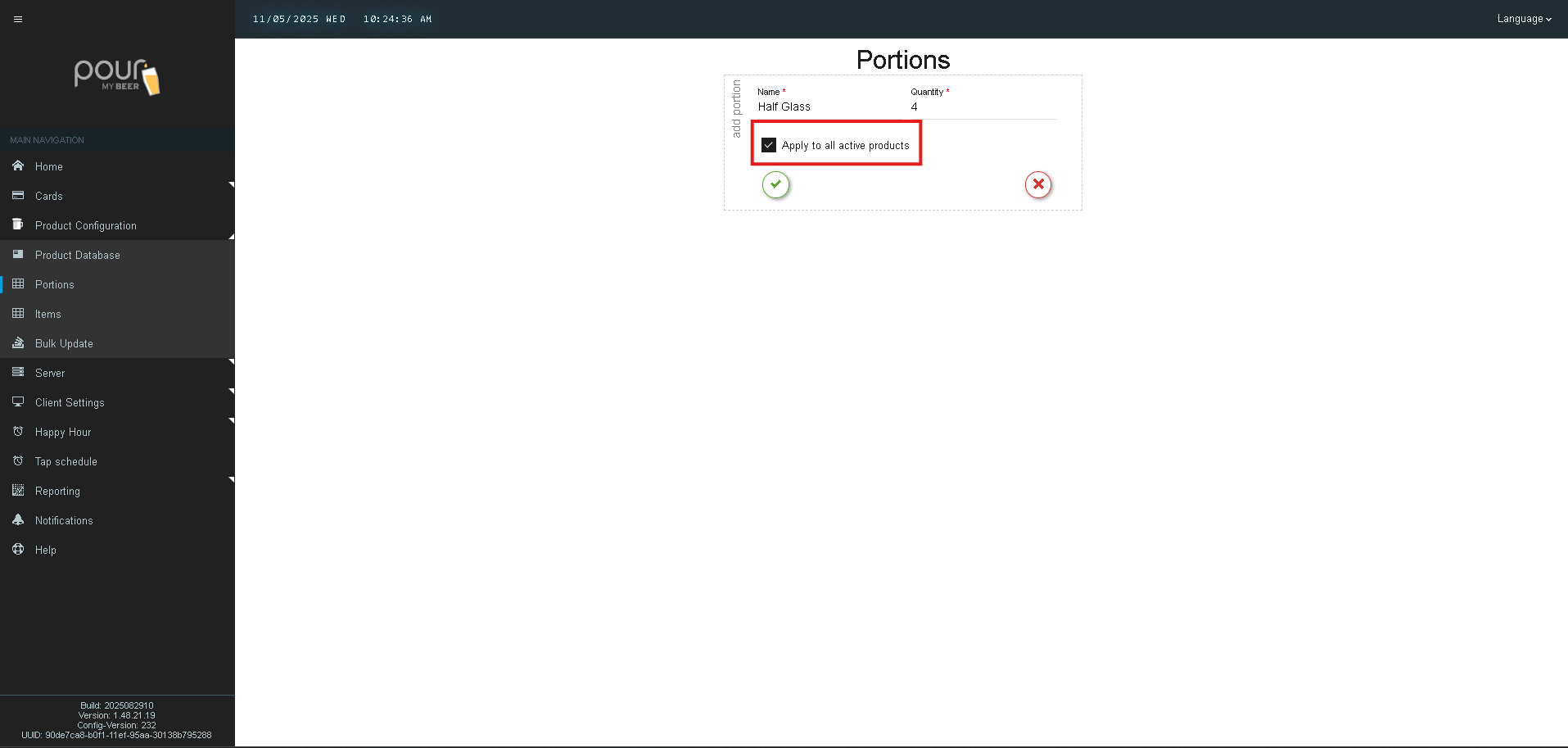

3. Check the box for Apply to All Active Products to make the portion available across all beers. This does not automatically turn on portions for the product just the ability to assign later.

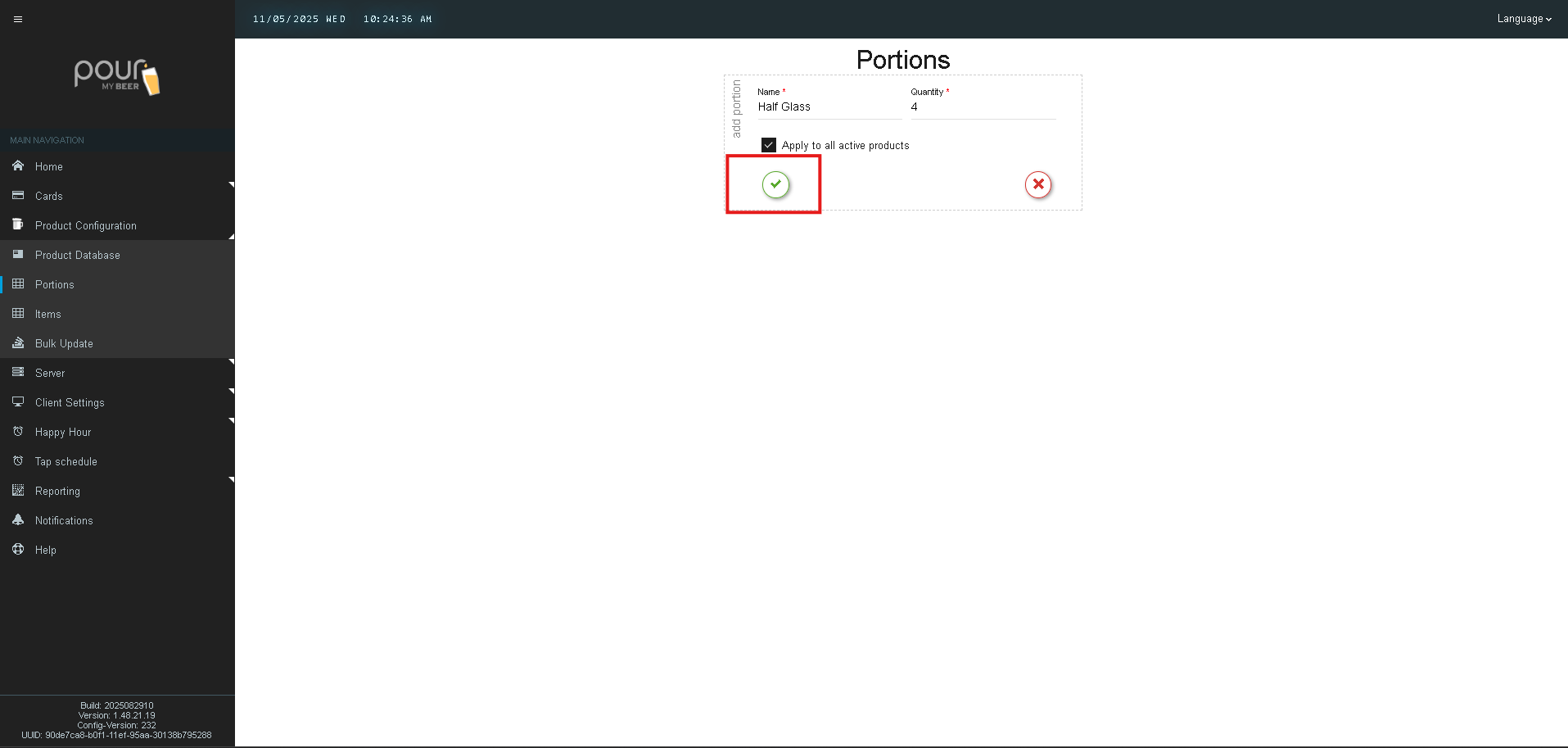

4. Click Green Check Mark to confirm.



You can add multiple portion sizes by repeating this step.

Step 3: Sync the Portion Settings

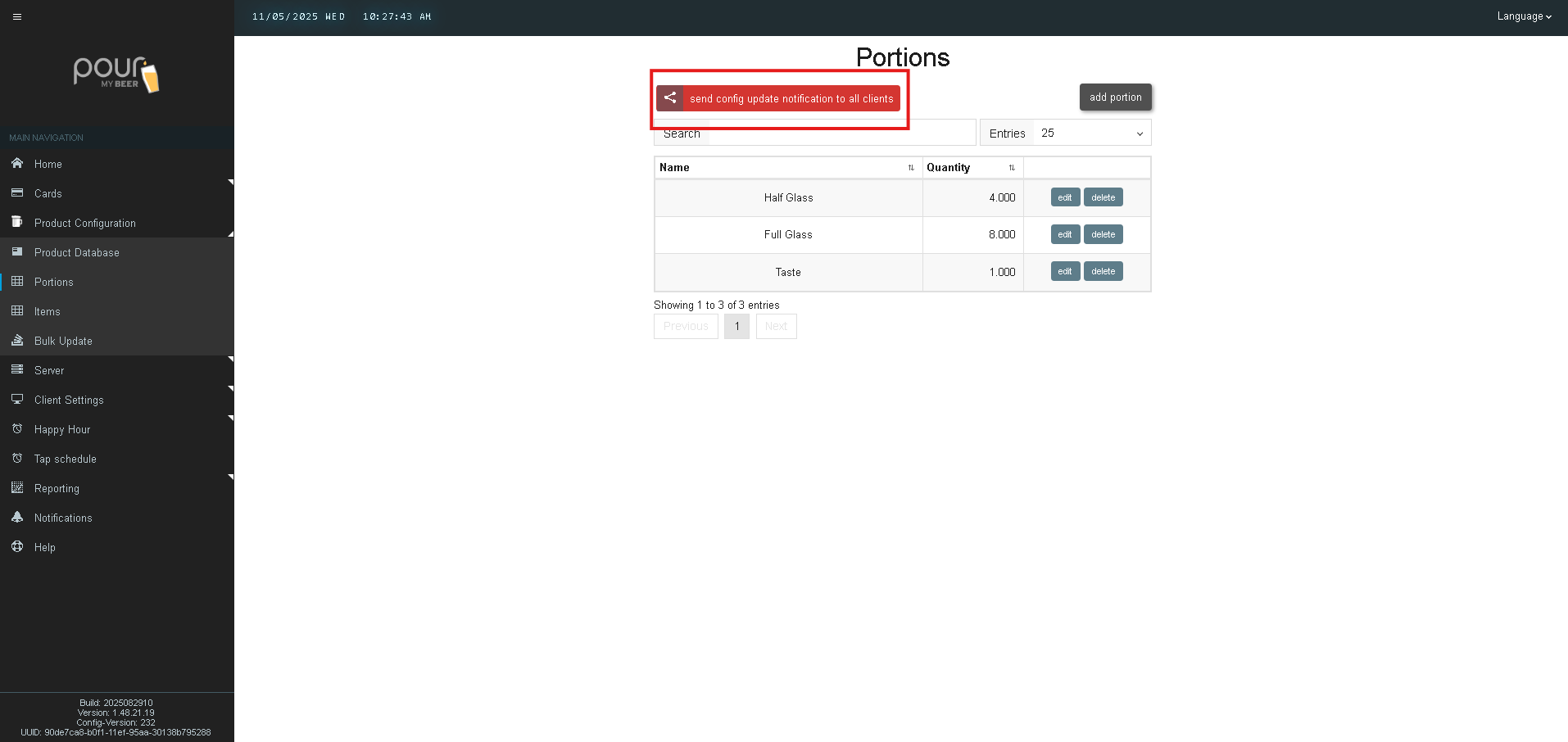

1. Once you’ve added your desired portions, click the Send Config Update Notification button.



Always send a configuration update after any server-side change to ensure all clients are synchronized.

Step 4: Verify Items in the Product Database

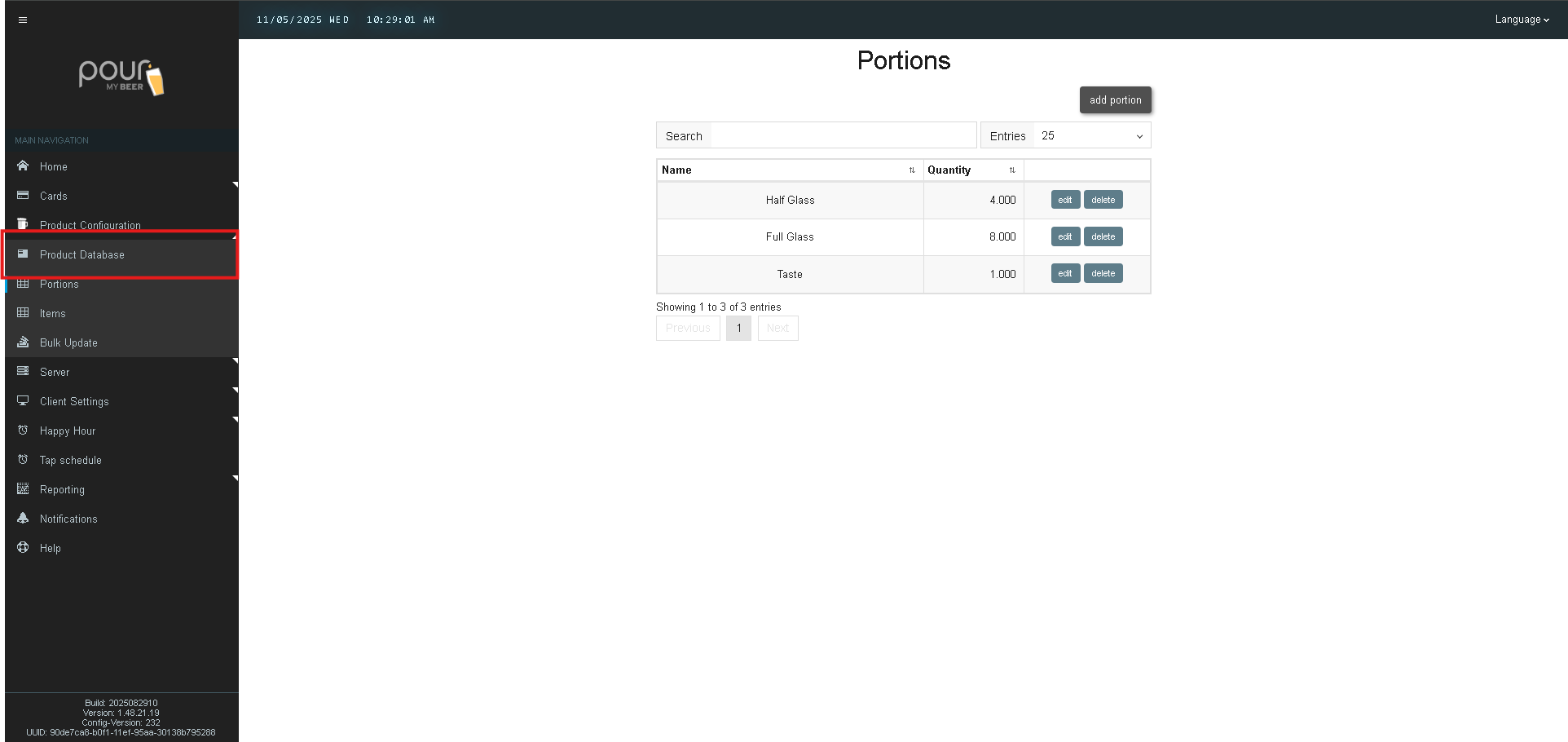

1. Navigate back to the Product Database on the left side.

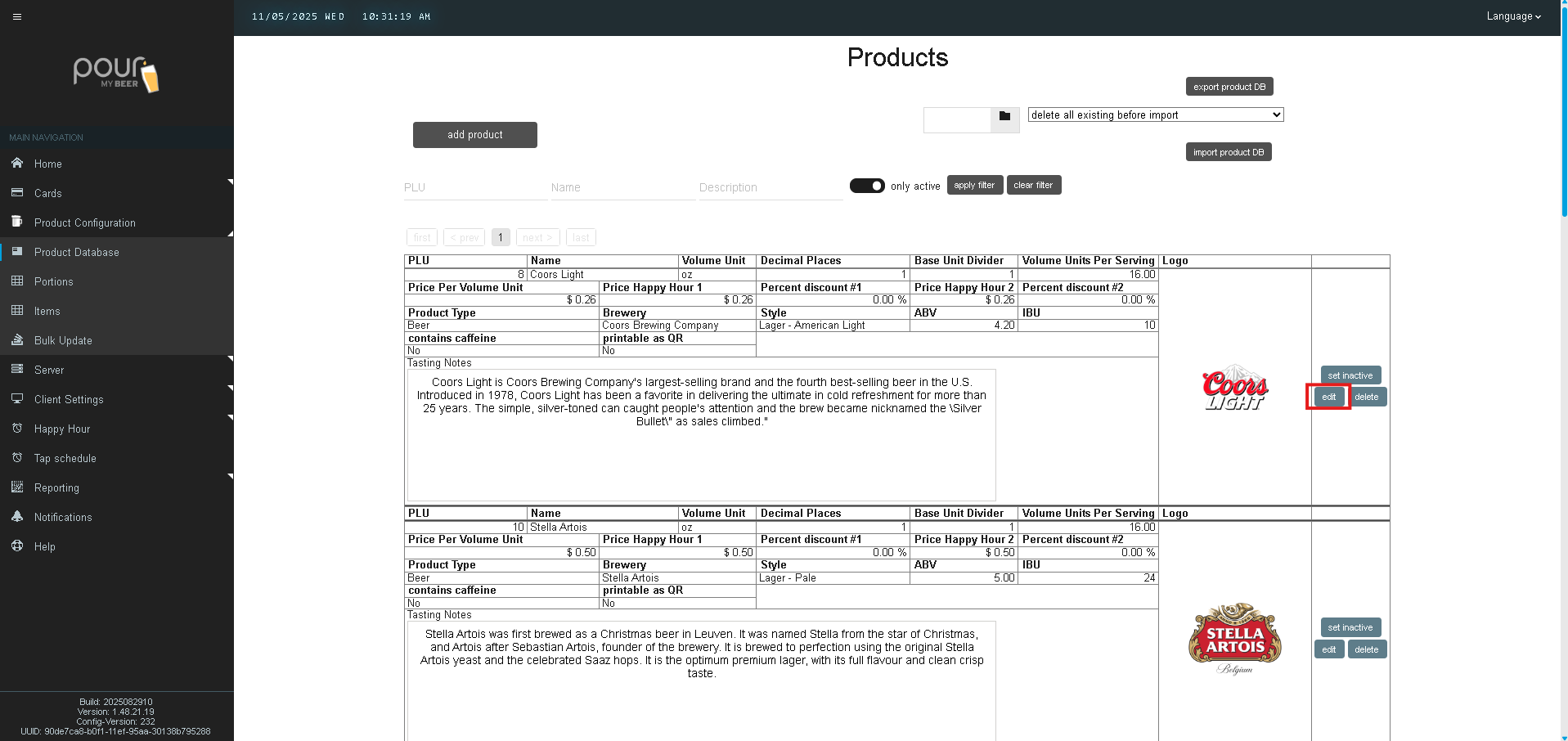

2. Select an Active Product and edit it.

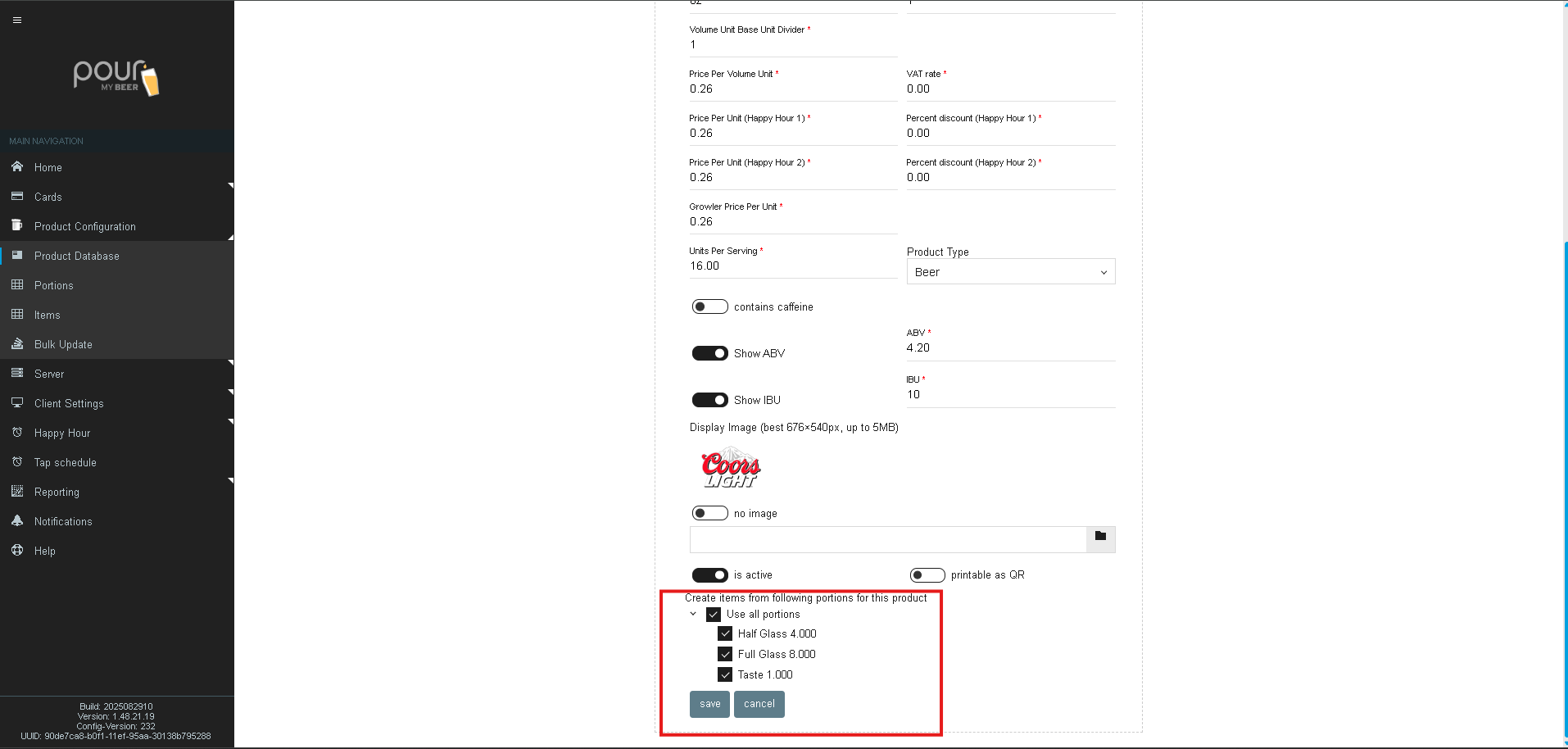

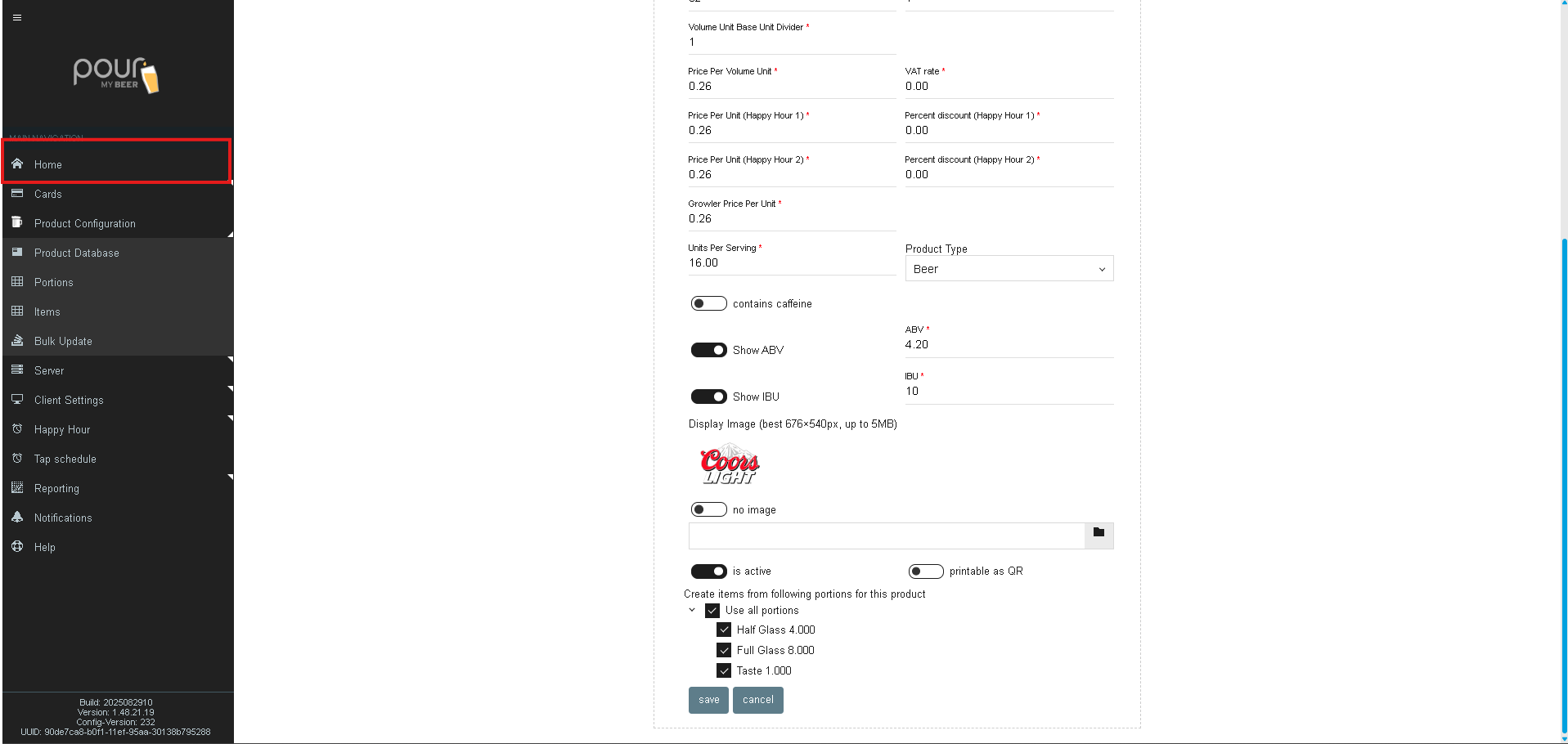

3. Scroll to the bottom to see the portions are selected.



4. Click the Home icon to return to the main server menu.



Step 5: Enable Portion Mode for Each Tap

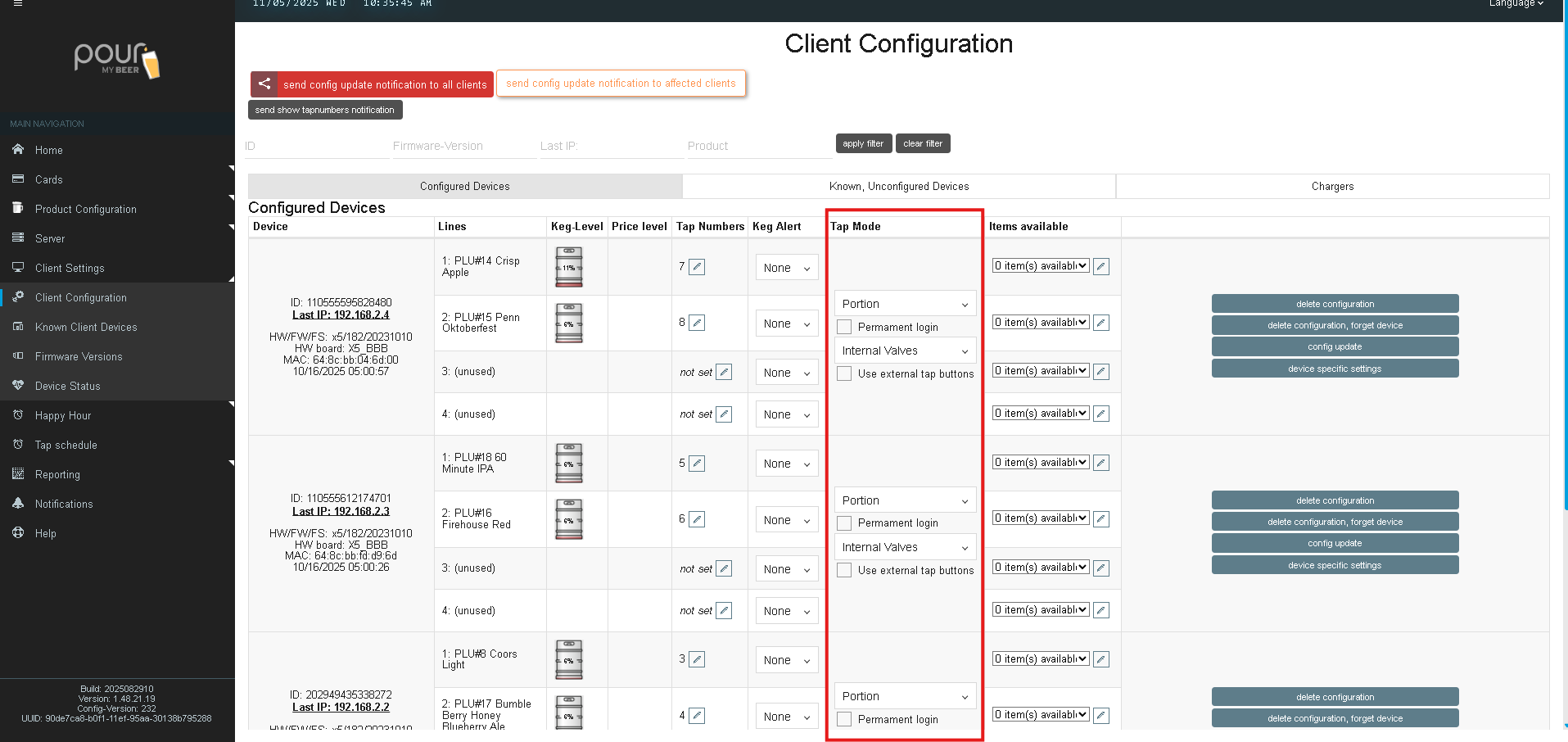

1. From the main server menu, click Client Settings.

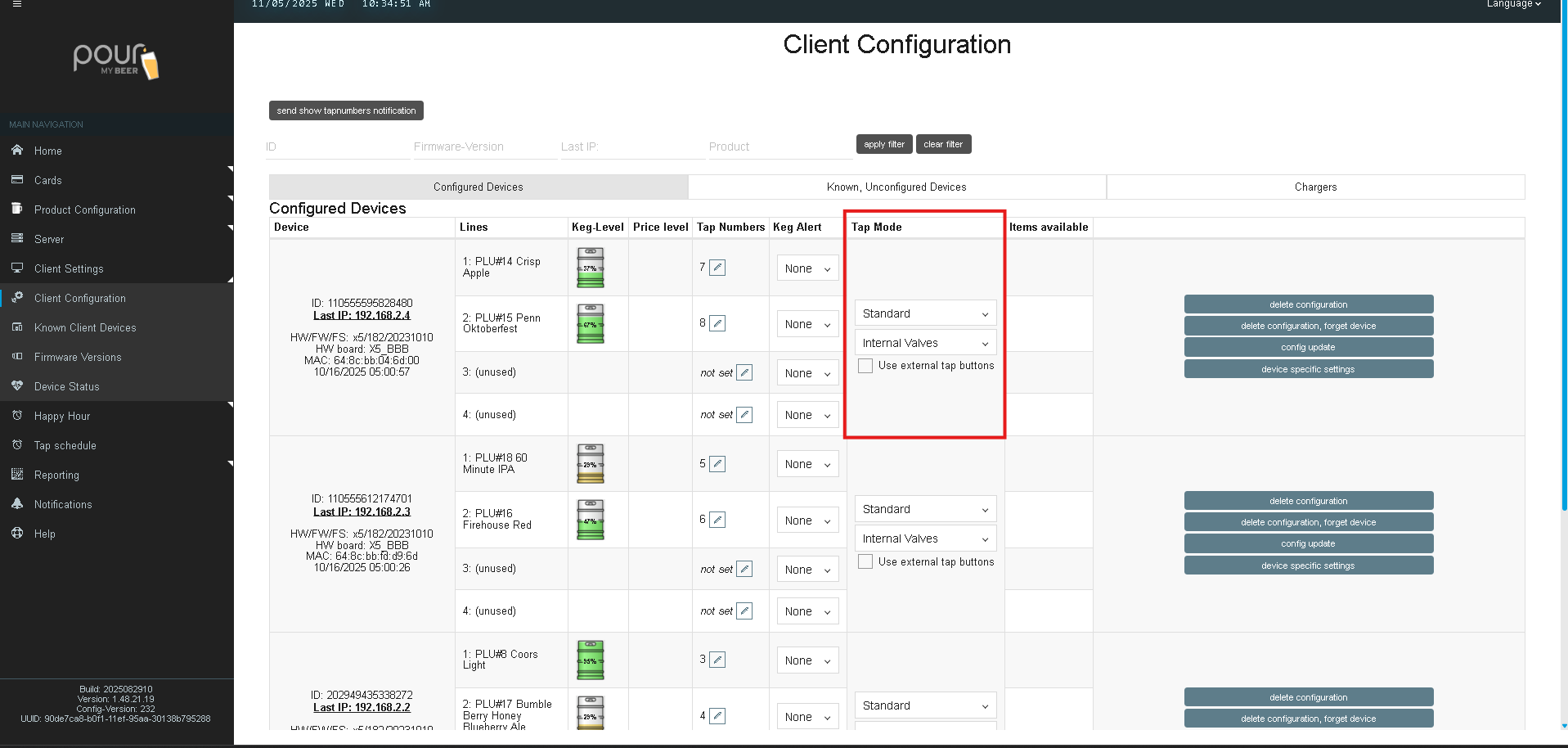

2. Under the Tap Mode section, locate each tap line.



3. Use the drop-down menu to select Portion Mode for every tap.

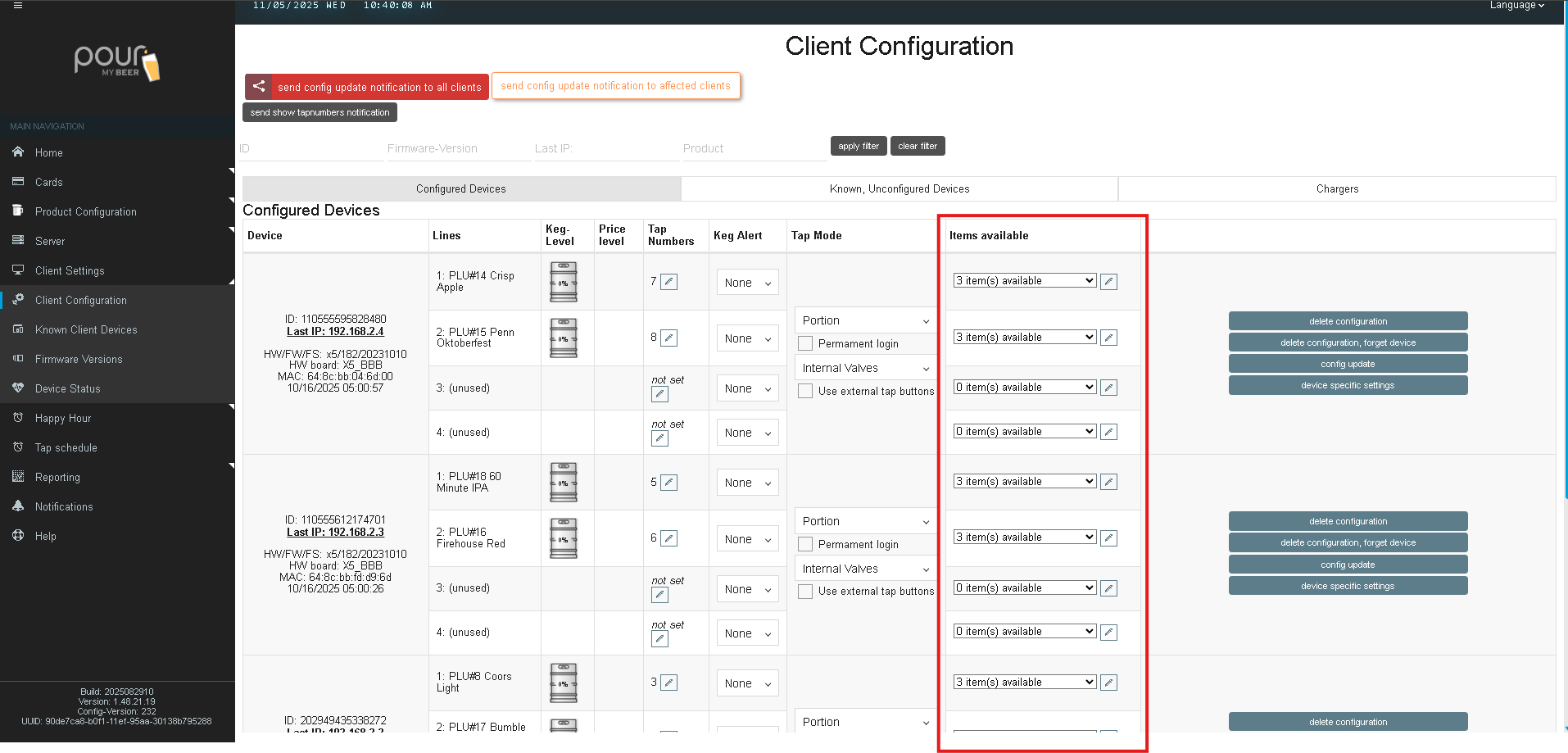

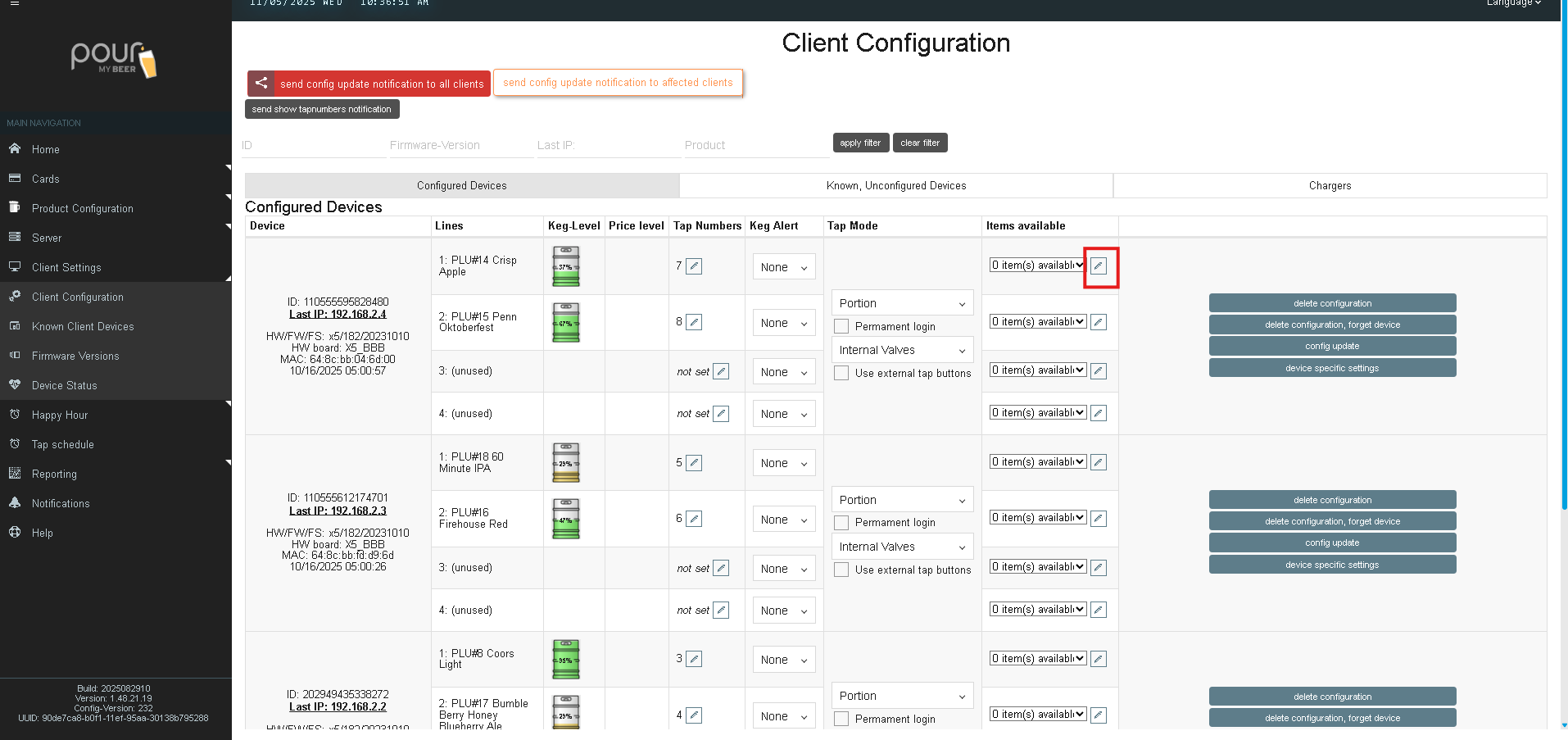

4. Under Items Available Click the pencil for each tap.

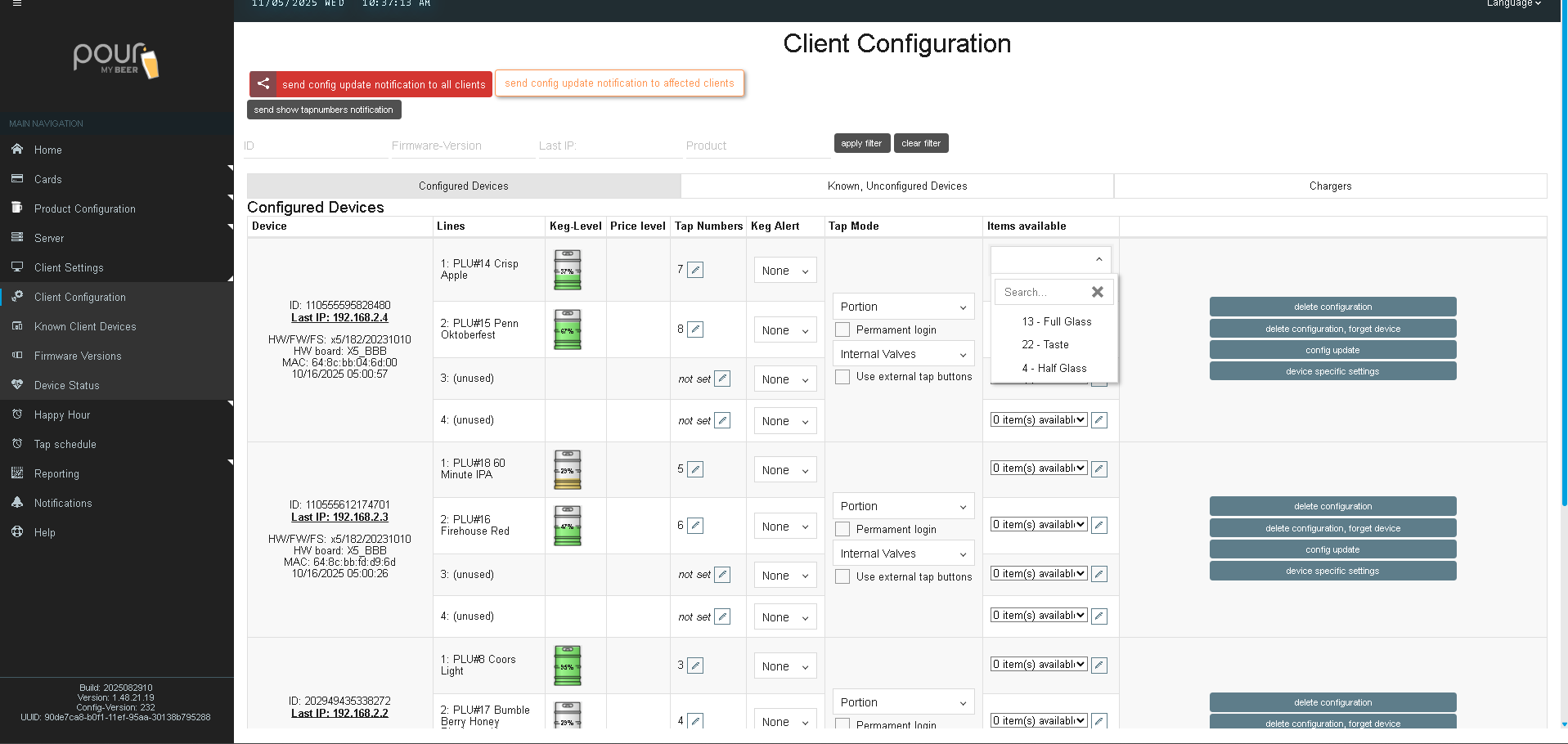

5. From the drop down select all the portions you want for that product.

6. Click the save icon.

7. Repeat this process until all the taps that are under portion mode have items available.

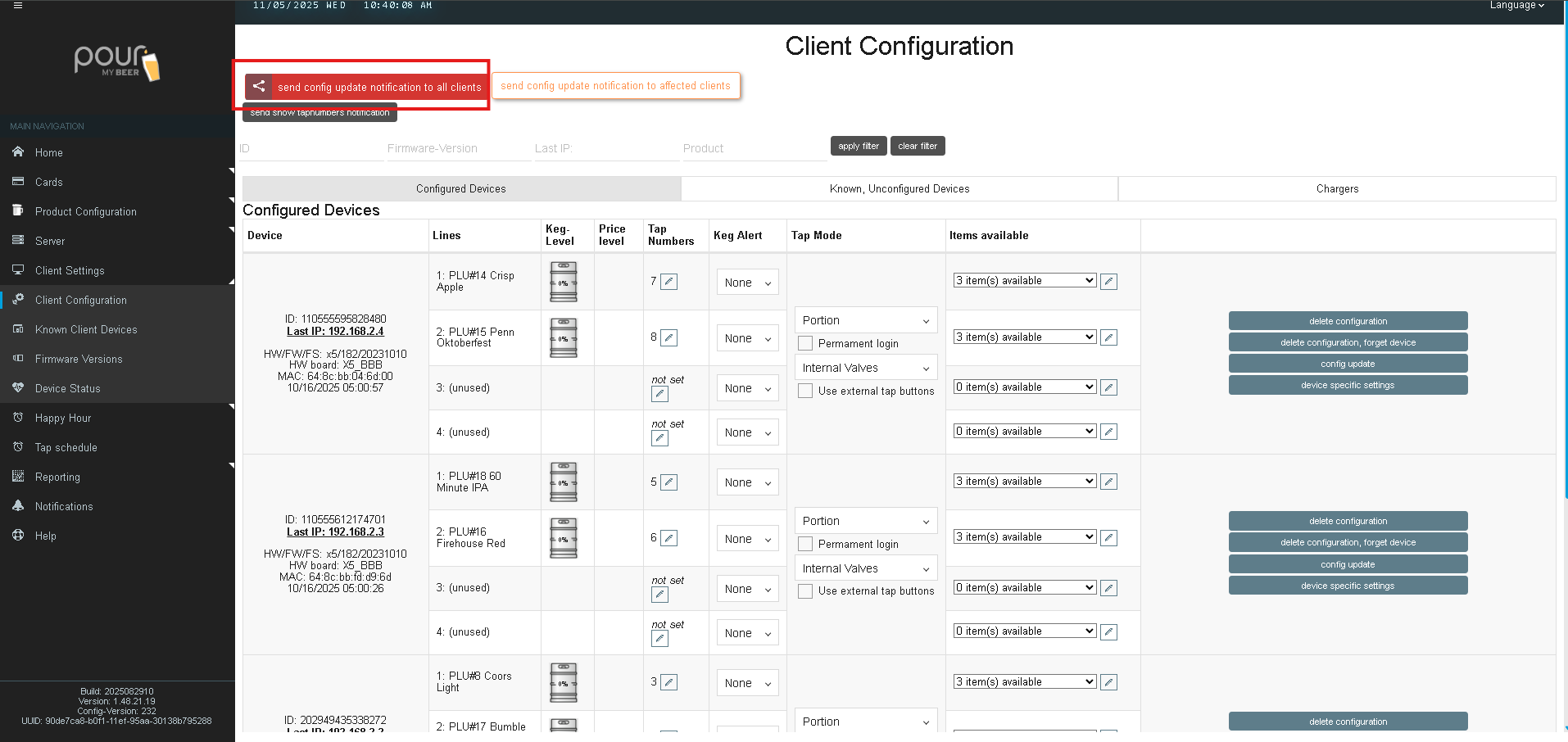

8. After all taps are updated, click Send Config Update Notification again to apply the changes.



Portion Mode must be enabled individually for each tap.

Step 6: Configure Portions on the Tap Screen

You’ll now finalize setup directly on each tap display.

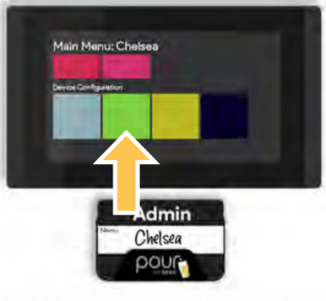

1. Place your Admin Card on the tap screen.

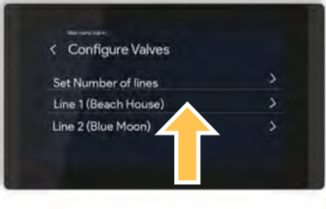

2. Tap Configure Valves.

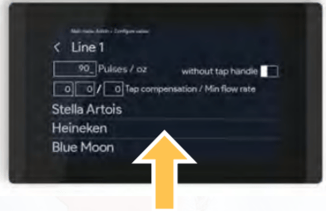

3. Select the line or tap you wish to update.

   • If multiple lines are present, complete these steps for each one individually.




4. Scroll through the product list and tap the beer or beverage assigned to that line.

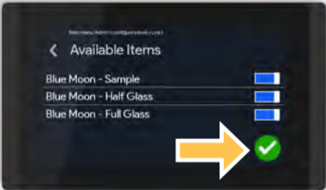

5. A Size Menu will appear.

6. Toggle On all desired portion sizes, then tap the green checkmark ✅ to save.



Repeat this process for every tap screen in your setup.

Step 7: Verify Portion Mode Operation

When a customer places their RFID card on the reader:

1. The portion selection menu will appear automatically.

2. The customer can choose their preferred size (e.g., 4oz Taster or 16oz Pint) before pouring.

3. Once selected, the pour proceeds as normal.
