How to Complete the Configuration Wizard

When you first start up or reset a tap screen, you’ll be guided through the Configuration Wizard.
This wizard helps connect your device to the server, assign IP information, and configure your tap lines.
Follow the steps below to complete the initial setup.

Step 1: Start the Configuration Wizard

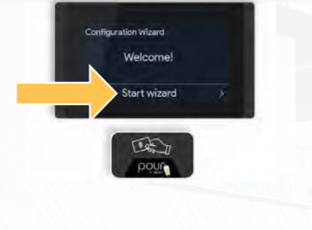

  1. Power on the tap screen.

  2. When prompted, tap Start Wizard to begin setup.

    mceclip0-4

The Configuration Wizard automatically launches after a factory reset or new installation.

Step 2: Choose a Screen Configuration

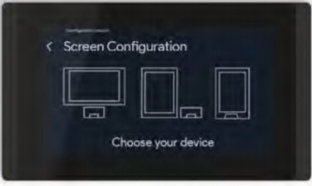

Select the screen orientation and reader type that matches your installation:

  • Horizontal with Detached Reader

  • Vertical with Detached Reader

  • Vertical with Built-In Reader

    mceclip1-4

Tap the option that applies to your screen layout.

Step 3: Configure Network Settings

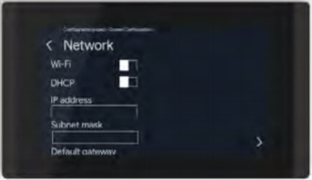

  1. Tap the Wi-Fi and DHCP switches so they are both OFF (to the left).

    mceclip2-Jul-21-2021-02-16-26-20-PM

  2. Enter a unique IP Address for this screen.

    • Example:


      192.168.2.101

    • Each tap screen must have its own unique IP address to communicate with the server.

  3. Enter the Subnet Mask as:


    255.255.255.0

  4. Tap the right arrow to continue.

    mceclip3-3

Static IP addresses prevent network conflicts and ensure stable operation.

Step 4: Connect to the Server

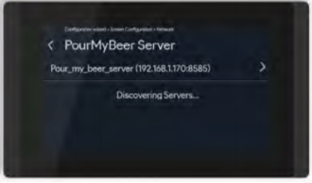

  1. The system will search for available servers on the network.

  2. When your server appears (for example, 192.168.2.XXX), tap to select it.

    mceclip4-3



Step 5: Log In

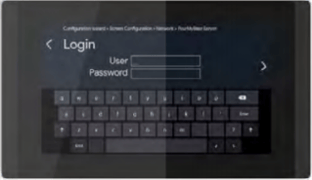

  1. When prompted, enter your credentials:

    • Username: admin

    • Password: admin


    mceclip5-2

  2. Tap the right arrow to continue.

  3. A message will display: “Downloading Configuration.”

Default credentials should only be used for initial setup. Once complete, create a secure Admin Card for future access.

Step 6: Assign Lines and Calibration Values

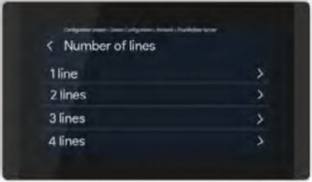

  1. Select the number of lines/taps connected to this unit.

    mceclip6-2

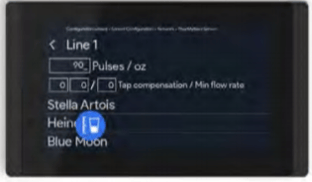

  2. For each line:

    • Set Pulses/oz to 90 (default value for most installations).

    • Leave Tap Compensation at 0 unless instructed otherwise by a PourMyBeer technician.

    • Assign the correct brand or product to each line.


    mceclip7-1

If you’re unsure about calibration, contact PourMyBeer Support for guidance before making changes.

Step 7: Complete Setup

Once you’ve confirmed all settings:

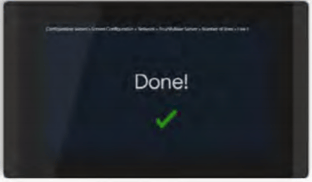

  1. Tap the green checkmark ✅ to save.

    mceclip8-1

  2. You’ll see a confirmation message indicating setup is complete.

  3. Your tap screen is now ready for use!

    mceclip9

If you ever replace or reset a screen, repeat this same Configuration Wizard process.
